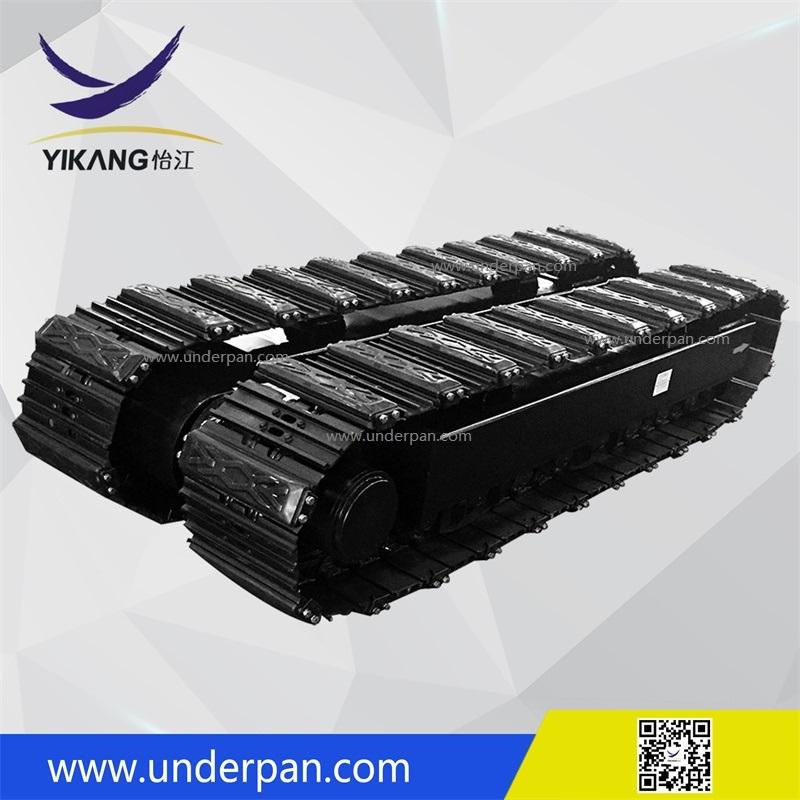

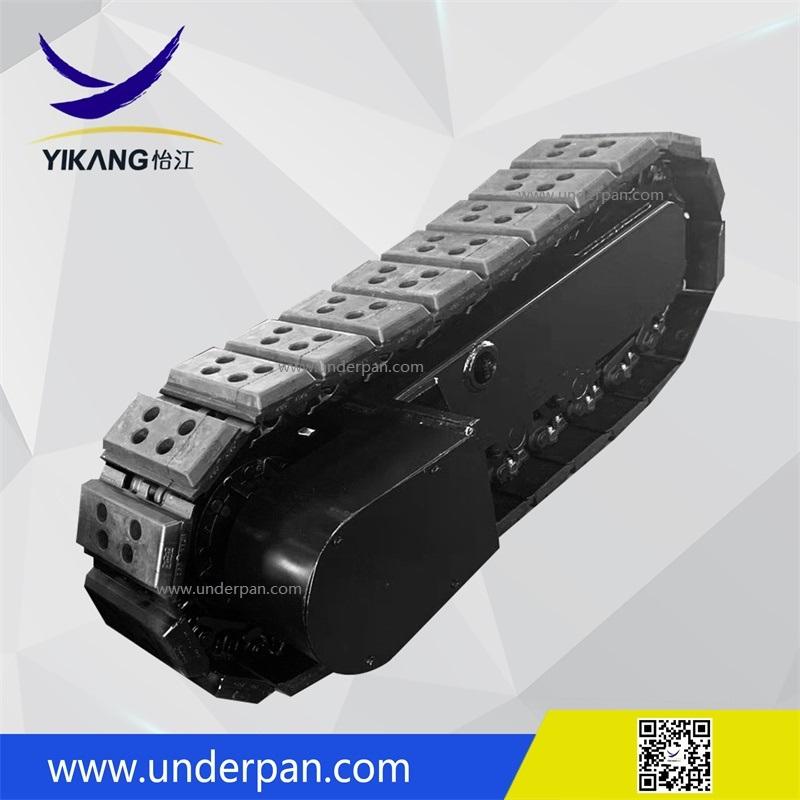

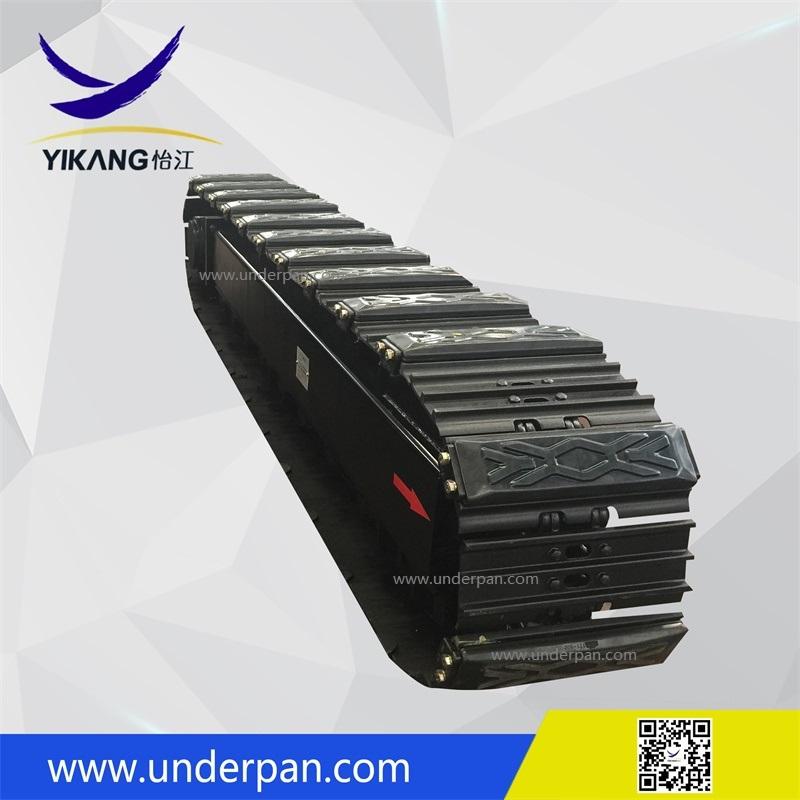

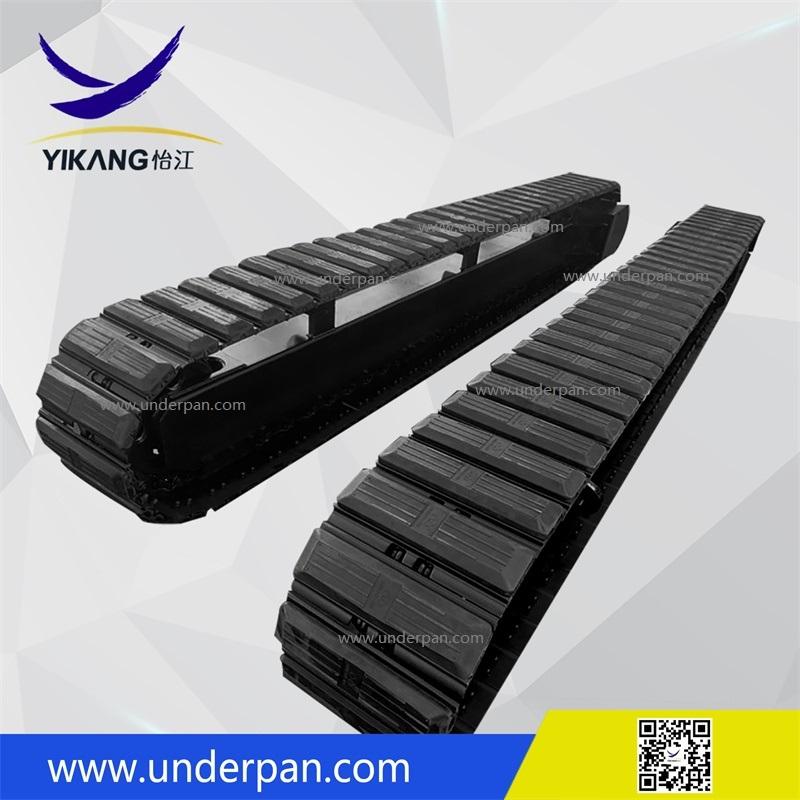

Product Description
YIJIANG specialize in desiging track undercarriage manufacturing.
YIJIANG company is specialized in manufacturing crawler undercarriage, including engineering machinery undercarriage, skid steer loader undercarriage, agricultural machinery undercarriage, garden machinery undercarriage and the matched spare parts: track roller, top roller, sprocket, idler and rubber track.
Related Products
1. We are manufacturer , belong to the integration of industry and trade.
2. Our company has independent design capability and team.
3. Our company has a complete set of processing methods, processing center.
4. Our company's product series are complete: from track roller, sprocket, top roller, front idler, rubber track, steel track to undercarriage, we can design and customize special mechanical equipment.
5. Our company has a strong R&D platform.
Main Product
YIJIANG undercarriage is widely used in various mobile crusher, drilling, mine machinery, fire-fighting robot, underwater dredging equipment ,aerial working platform, transport lifting equipment, agricultural machinery, garden machinery, special working machinery, field construction machinery, exploratory machinery, loader, static detection machinery, gadder , anchor machinery and other large, medium and small machinery.
Technical Parameters
Undercarriage is divided to steel track and rubber track undercarriage. Steel track undercarriage’s carrying capacity is 1 ton -150 ton, rubber track undercarriage’s carrying capacity is 0.2 ton - 30 ton.
| Type |
Parameters（mm) |
Track Varieties |
Bearing(Ton) |
| A(length) |
B(center distance) |
C(total width) |
D(width of track) |
E (height) |
| SJ050 |
1200 |
900 |
900 |
150 |
300 |
rubber track |
0.5 |
| SJ080 |
1240 |
940 |
900 |
180 |
300 |
rubber |
0.8 |
| SJ100 |
1380 |
1080 |
1000 |
180 |
320 |
rubber |
1 |
| SJ150 |
1550 |
1240 |
1000 |
200 |
350 |
rubber |
1.3-1.5 |
| SJ200 |
1850 |
1490 |
1300 |
250 |
400 |
rubber |
1.5-2.0 |
| SJ250 |
1930 |
1570 |
1300 |
250 |
450 |
rubber |
2.0-2.5 |
| SJ300A |
2030 |
1500 |
1600 |
300 |
480 |
rubber |
3.0-4.0 |
| SJ300B |
1895 |
1500 |
1700 |
300 |
485 |
steel |
3.0-4.0 |
| SJ400A |
2166 |
1636 |
1750 |
300 |
520 |
rubber |
5 |
| SJ400B |
1990 |
1600 |
1800 |
300 |
530 |
steel |
5 |
| SJ500A |
2250 |
1720 |
1800 |
300 |
535 |
rubber |
6 |
| SJ500B |
2118 |
1591 |
1800 |
300 |
550 |
steel |
6 |
| SJ700A |
2812 |
2282 |
1850 |
350 |
580 |
rubber |
7 |
| SJ700B |
2795 |
2265 |
1800 |
350 |
600 |
steel |
7 |
| SJ800A |
2880 |
2350 |
1850 |
400 |
580 |
rubber |
8 |
| SJ800B |
2880 |
2350 |
1850 |
400 |
600 |
steel |
8 |
| SJ1000A |
3500 |
3202 |
2200 |
400 |
650 |
rubber |
10 |
| SJ1000B |
3500 |
3202 |
2200 |
400 |
670 |
steel |
10 |
| SJ1500A |
3800 |
3802 |
2200 |
500 |
700 |
rubber |
15 |
| SJ1500B |
3800 |
3802 |
2200 |
400 |
700 |
steel |
15 |
| SJ2000B |
3805 |
3300 |
2200 |
500 |
720 |
steel |
20 |
| SJ2500B |
4139 |
3400 |
2200 |
500 |
730 |
steel |
25 |
| SJ3500B |
4000 |
3280 |
2200 |
500 |
750 |
steel |
40 |
| SJ4500B |
4000 |
3300 |
2200 |
500 |
830 |
steel |
50 |
| SJ6000B |
4500 |
3800 |
2200 |
500 |
950 |
steel |
60 |
| SJ8000B |
5000 |
4300 |
2300 |
600 |
1000 |
steel |
90 |
| SJ10000B |
5500 |
4800 |
2300 |
600 |
1100 |
steel |
110 |
| SJ12000B |
5500 |
4800 |
2400 |
700 |
1200 |
steel |
130 |
| SJ15000B |
6000 |
5300 |
2400 |
900 |
1400 |
steel |
150 |
Standard Specification
ODM&OEM Available
Our R&D team and senior product engineers offer you customized according to colour and size,which ensures a differentiated product series competitiveness in the market.
Quality Assured
One - stop Solution
Our company has a complete product category which means you can find everything you need here.with the competitive prices we offer.your parchase is sure to be a time-saving and economic one.
About Us
Zhenjiang Yijiang Chemical Co., Ltd. was founded in 2005,and focus on the manufacture and development of engineering machinery parts, our products are mainly exported to North Americal, Europe, Southeast Asia and other countries and regions. Our main products are construction machinery undercarriage, rubber track, steel track, Morooka parts, skid steer parts, track roller, sprocket, carrier roller,idler etc.
Zhenjiang Shen-Ward Machinery Co., Ltd. Is founded in 2007 and is specialized in design and manufacture crawler undercarriage system, which is suitable for construction, mining and agricultural machinery etc.
With the talented engineers, professional staffs and advanced technology and equipment we can supply the whole undercarriage system including hydraulic parts, bearing bracket, gear-box etc. as customer required.
Packaging & Shipping
Packaging of front idler : Standard wooden pallet.
Mode of Transportation: ocean shipping, air freight, land transportation.
Company Exhibiton
We sincerely welcome clients from worldwide to cooperate with us for win - win business.
Company Specification
We have recieved ISO9001:2015 quality certification and multiple patent certificates.
The rich lean production experience that ensures the quality of each product is in control.
Beside,we have a complete inspection process to make sure you get a perfect product.
Cooperation Case
FAQ
| How will you place your order? |
| In order to recommend a suitable drawing and quotation to you , we need to know: |
| a. Rubber track or steel track undercarriage, and need the middle frame. |
| b. Machine weight and undercarriage weight. |
| c. Loading capacity of the track undercarriage ( the weight of the whole machine excluding of track undercarriage. |
| d. Undercarriage’s length, width and height |
| e. Track’s Width. |
| f. Height |
| g. The max speed (KM/H). |
| h. Climbing slope angle. |
| i. The machine’s apply range , working environment. |
| j. Order quantity. |
| k. Port of destination. |
| l. Whether you require us to purchase or collocate relevant motor and gear box or not, or other special request. |
